Main Window¶

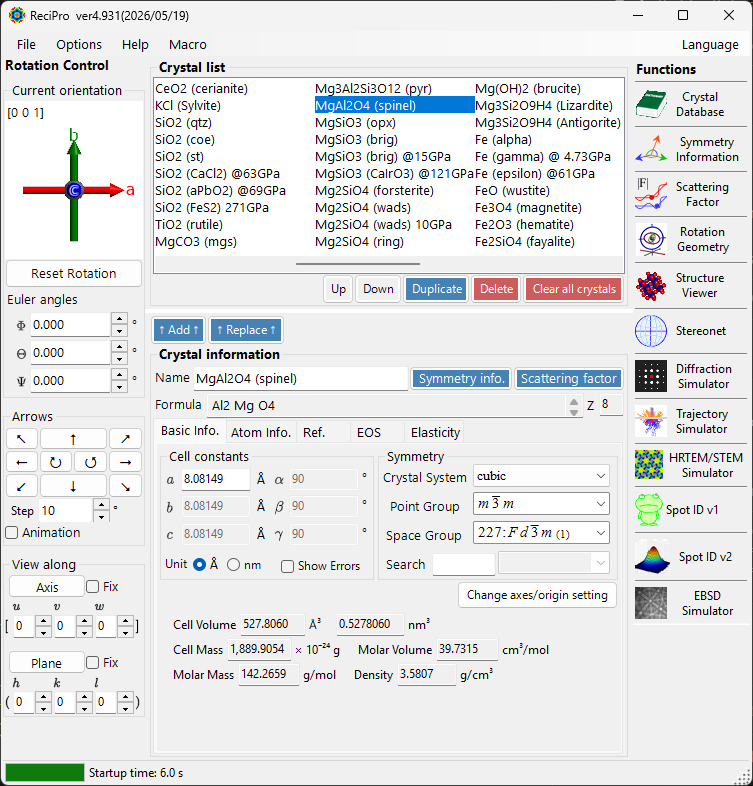

When ReciPro launches, the main window appears. From this window you select the crystal, control its rotation, and invoke various functions.
| Area | Location | Description |
|---|---|---|
| File menu | Top | File operations, options, help |
| Rotation control | Left | View/set crystal orientation |
| Crystal List | Upper centre | Select and manage crystals |
| Crystal Information | Lower centre | Edit lattice parameters, symmetry, atoms |
| Functions | Right | Launch simulation/analysis windows |
Functions panel¶
The vertical button strip on the right launches the analysis and simulation windows (see the Functions table below).
File menu¶
File¶
| Menu item | Description |
|---|---|
| Read crystal list (as new list) | Load a crystal list file (*.xml), replacing the current list |
| Read crystal list (and add) | Append to the current list |
| Read initial crystal list | Reload the default crystal list |
| Save crystal list | Save the current crystal list |
| Export selected crystal to CIF | Save in CIF format |
| Clear crystal list | Remove all crystals |
| Exit | Close the application |
Option¶
| Menu item | Description |
|---|---|
| Show Tooltips | Toggle tooltip display |
| Use Miller-Bravais (hkil) index | Use 4-index notation for trigonal/hexagonal systems throughout the app |
| Reset registry settings on exit (effective after restart) | Reset settings on next restart |
| Disable Crystallography.Native library (requires restart) | Fall back to managed code if the native (C++) library fails to load |
| Disable all OpenGL rendering (requires restart) | For older GPUs / remote desktop |
| Disable OpenGL text rendering (requires restart) | Workaround for text-rendering issues on some GPUs |
| Use MKL Library | Use Intel MKL for numerical routines |
| Dark mode | Switch between light and dark colour themes |
| Powder diffraction function (under development) | Enable the polycrystalline (powder) diffraction window |
| Capture GUI Components… | Developer tool for saving GUI screenshots |
Miller–Bravais index — enabling Option ▸ Use Miller-Bravais (hkil) index switches plane indices to 4-index hkil notation for trigonal/hexagonal crystals throughout the program.
Help¶
Check for updates, hints, version history, license, GitHub repository, bug/feature reports, and online help — Help (Web) and Help (Wiki). Language is switched from the separate Language menu (English/Japanese, requires restart).
Language¶
Macro¶

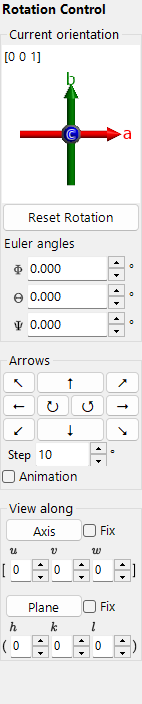

Rotation control¶
Current orientation¶
Shows crystal orientation. Drag to rotate. Axes: red = a, green = b, blue = c.
Reset rotation¶
Resets to initial: c-axis perpendicular to screen, b-axis upward.
Zone axis¶
Displays closest zone axis to screen normal (e.g., u+v+w < 30).
Euler angles (Z-X-Z)¶
- Psi: Z-axis rotation, Theta: X-axis rotation, Phi: Z-axis rotation
- See 3. Rotation Geometry and Appendix A1. Coordinate System.
Arrows¶
Rotate by angle Step. Check Animation for continuous rotation.
View along¶
Align a zone axis [uvw] or crystal plane (hkl) perpendicular to the screen.

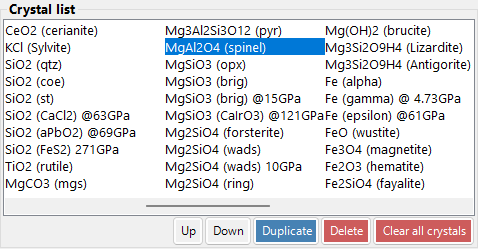

Crystal List¶
~80 crystals in default installation. Select to view details and set for calculations.
| Button | Action |
|---|---|
| Up / Down | Reorder |
| Duplicate | Copy the selected crystal |
| Delete / All clear | Remove crystals |
| Add / Replace | Add to list or replace the selected entry |

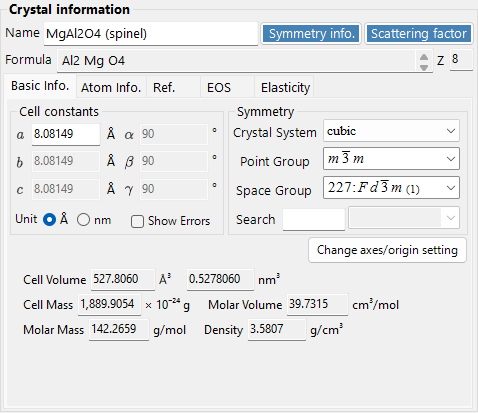

Crystal Information¶
Edit lattice parameters, symmetry, and atoms. Drag & drop CIF/AMC files.
Important: Press Add or Replace to save changes.

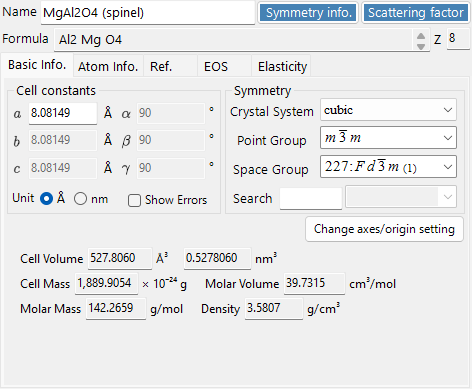

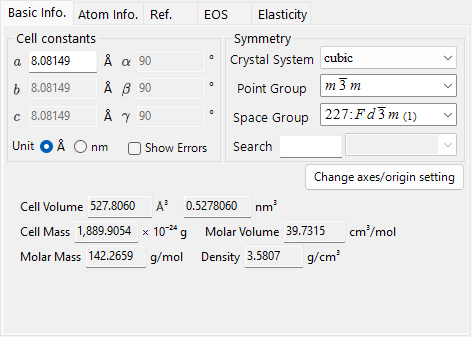

Basic Info tab¶

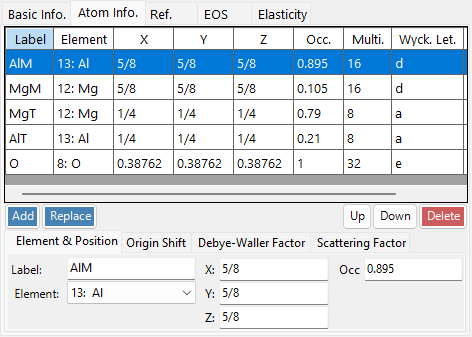

Atom tab¶
Reference tab¶

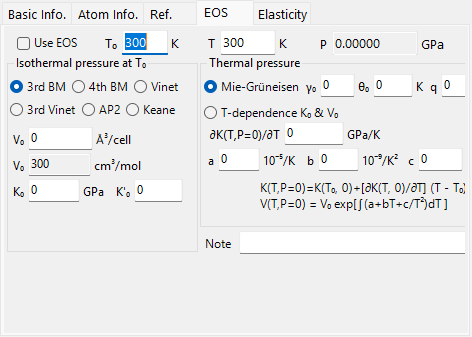

EOS tab¶
Elasticity tab¶

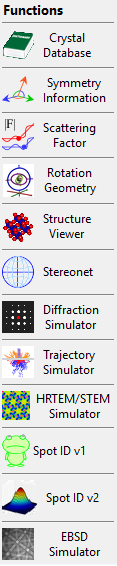

Functions¶
| Button | Description | Details |
|---|---|---|
| Crystal Database | Search and import crystals from the bundled / online databases | 1. Crystal database |
| Symmetry Information | Space-group info and ITC Vol. A symmetry diagrams | 11. Symmetry information |
| Scattering Factor | Crystal planes & structure factors | 12. Scattering factor |
| Rotation Geometry | 3D rotation matrix / goniometer angles | 3. Rotation Geometry |
| Structure Viewer | 3D crystal structure | 5. Structure viewer |
| Stereonet | Stereographic projection | 6. Stereonet |
| Diffraction Simulator | Single-crystal X-ray / electron diffraction | 7. Diffraction simulator |
| Trajectory Simulator | Monte-Carlo electron-trajectory simulation | 13. Electron trajectory |
| HRTEM/STEM Simulator | HRTEM / STEM image simulation | 8. HRTEM/STEM simulator |
| Spot ID v1 | SAED pattern indexing (formerly "TEM ID") | 10. Spot ID v1 |
| Spot ID v2 | Spot detection & indexing | 10.1 Spot ID v2 |
| EBSD Simulator | EBSD pattern simulation | 14. EBSD simulation |
| Powder Diffraction | Polycrystalline (powder) diffraction — enable via Option ▸ Powder diffraction function | - |
Right-click a crystal in the Crystal List for a context menu: Rename, Export as CIF, Duplicate, Delete.
